Making Sense of Data with MySQL

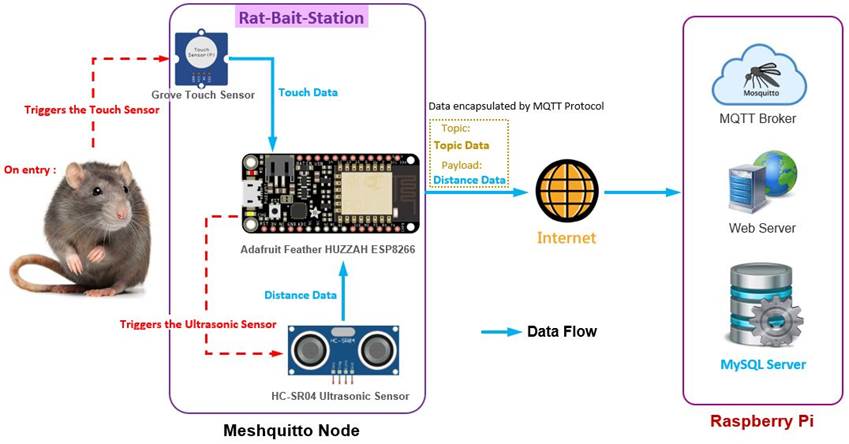

The Meshquitto node (MQTT Client: Publisher) publishes out the Distance Data using the MQTT protocol to the receiving MQTT broker. The MQTT protocol encapsulates the Distance Data and publishes to Topic: /Meshnet-01/RatBS002/.

Hence, the data sent out by any Meshquitto nodes to the Raspberry Pi becomes interesting. The data contains additional information. Besides the Distance Data, we have the Topic Data from the MQTT.

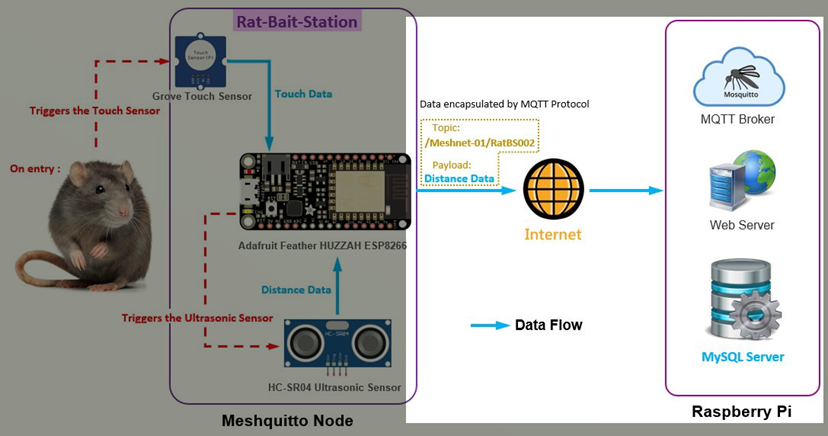

MQTT encapsulated packet sent from Meshquitto node (MQTT Client: Publisher) to Raspberry Pi (MQTT Client: Subscriber) containing an example of a topic and payload:

ü  Topic Data: /Meshnet-01/RatBS002/

ü  Distance Data: 8

The Python Program Flowchart

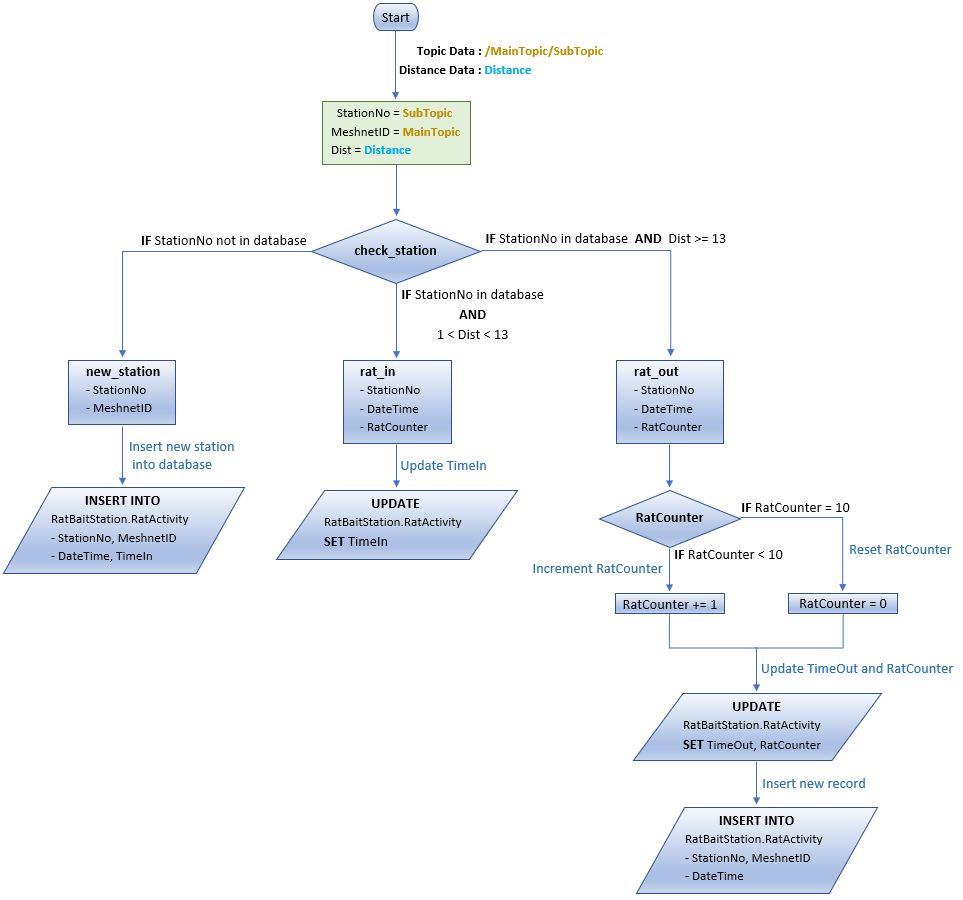

The flowchart below shows the process of converting the received MQTT packet into meaningful data to be stored to the MySQL database server using the Python program on the Raspberry Pi. Keep in mind, the MQTT packet is sent by any Meshquitto nodes (Rat-Bait-Station) triggered by a rat on entry, to the Raspberry Pi running the Python program.

The Python Source Code

Below is the Python program with the included comments in the code to notate my work:

#!/usr/bin/python



#import MQTT library

import paho.mqtt.client as mqtt



#import MySQL library for Python

import MySQLdb



import time





#to connect to local MySQL database

db=MySQLdb.connect(user='root',passwd='admin',host='localhost',db='RatBaitStation')

cursor = db.cursor()





def check_station(StationNo,MeshnetID):



    print "\nDetected activity from Station: " + StationNo + " ... "



    cursor.execute("SELECT * FROM RatBaitStation.RatActivity "

                   "WHERE StationNo='%s' AND MeshnetID='%s' "

                   "ORDER BY DateTime DESC LIMIT 1" %(StationNo,MeshnetID))



    # StationNo in database, retrieve record

    if (cursor.rowcount!=0):

        for row in cursor.fetchall():

            StationNo = row[0]

            DateTime = row[2]

            TimeIn = row[3]

            TimeOut = row[4]

            RatCounter = row[5]



        if (TimeIn is None) and (Dist > 1) and (Dist < 13):     # Detected rat has entered station

            rat_in(StationNo, DateTime, RatCounter)             # Record TimeIn



        elif (TimeIn != None) and (Dist >= 13):                 # Detected rat has left station

            rat_out(StationNo, DateTime, RatCounter)            # Record TimeOut



        else:                           # Touch sensor activated, but no motion

            print "False alarm!"        # detected inside station

            print "---------------------------------------------------"



    # StationNo not in database, add new_station

    elif (Dist > 1) and (Dist < 13):

        new_station(StationNo,MeshnetID)



    else :

        print "False alarm!"

        print "--------------------------------------------------"





def rat_in(StationNo, DateTime, RatCounter):

    add_TimeIn = ("UPDATE RatBaitStation.RatActivity SET TimeIn=CURRENT_TIMESTAMP, RatCounter=%s"

                   " WHERE StationNo = %s AND DateTime = %s ORDER BY DateTime ASC LIMIT 1")



    data_TimeIn = (RatCounter, StationNo, DateTime)



    print " ... RAT has entered Station: " + StationNo + " ... "



    # Record the time when rat enters the station

    cursor.execute(add_TimeIn, data_TimeIn)



    # Make sure data is committed to the database

    db.commit()



    print "TimeIn updated successfully"

    print "---------------------------------------------------"





def rat_out(StationNo, DateTime, RatCounter):

    if (RatCounter < 10):                       # Increment RatCounter

        RatCounter += 1

        data_record = (StationNo, MeshnetID, RatCounter)



    else :                                      # Reset RatCounter when RatCounter = 10

        data_record = (StationNo, MeshnetID, 0)





    add_TimeOut = ("UPDATE RatBaitStation.RatActivity SET TimeOut=CURRENT_TIMESTAMP, RatCounter=%s"

                   " WHERE StationNo = %s AND DateTime = %s ORDER BY DateTime ASC LIMIT 1")



    data_TimeOut = (RatCounter, StationNo, DateTime)





    add_record = ("INSERT INTO RatBaitStation.RatActivity "

                   "(StationNo, MeshnetID, DateTime, TimeIn, TimeOut, RatCounter)"

                   "VALUES (%s, %s, CURRENT_TIMESTAMP, DEFAULT, DEFAULT, %s)")



    print " ... RAT has left Station: " + StationNo + " ... "



    # Record the time when rat leaves the station

    cursor.execute(add_TimeOut, data_TimeOut)



    print "TimeOut updated successfully"

    print "-----------------------------------------------------"



    # Insert new record to detect next rat activity

    cursor.execute(add_record, data_record)



    # Make sure data is committed to the database

    db.commit()





def new_station(StationNo,MeshnetID):

    add_station = ("INSERT INTO RatBaitStation.RatActivity "

                   "(StationNo, MeshnetID, DateTime, TimeIn)"

                   "VALUES (%s, %s, CURRENT_TIMESTAMP, CURRENT_TIMESTAMP)")



    data_station = (StationNo, MeshnetID)





    print "New Station: " + StationNo + " joining " + MeshnetID + " added to database ... "



    cursor.execute(add_station, data_station)



    # Make sure data is committed to the database

    db.commit()



    print " ... 1st rat activity detected in " + StationNo + " ... "

    print "TimeIn updated successfully"

    print "-------------------------------------------------------------"





def on_message(client, userdata, message):



    global Dist

    global StationNo

    global MeshnetID



    print "\n\nmessage received: " + str(message.payload.decode("utf-8"))

    print "message topic = " + message.topic

    topic = message.topic

    if len(topic) > 21 :        # Topic indicate disconnect

        StationNo = topic[21:]

    else :

        StationNo = topic[12:]  # Topic indicate StationNo

    MeshnetID = topic[1:11]



    print "Station No.: " + StationNo

    print "Mesh Network ID: " + MeshnetID + "\n"

    print ("message qos=" , message.qos)

    print ("message retain flag=" , message.retain)



    Dist = int(str(message.payload.decode("utf-8")))



    check_station(StationNo, MeshnetID)





def on_connect(client, userdata, flags, rc):

    print("Connected flags ",str(flags), "result code ", str(rc))







broker_address ="raspberrypi"

port=8883

client = mqtt.Client("RaspberryPi")

client.tls_set('/etc/mosquitto/ca_certificates/ca.crt')

client.username_pw_set(username="Ratnet01",password="ratpoison")

client.on_connect = on_connect

client.on_message = on_message

client.connect(broker_address, port)





while 1:

    client.loop(1)

    client.subscribe("/Meshnet-01/#", 2)

    time.sleep(5)



The above code in plaintext: project-py.txt



Summary

The IoT data solution begins from a simple touch sensor triggered by a rat on entry to the Rat-Bait-Station, in turn triggers the ultrasonic sensor with both sensors attached to the ESP8266 using an Arduino sketch to send a MQTT encapsulated packet containing Topic and Distance data to be converted into informative data written and stored to the MySQL database server using a Python program on Raspberry Pi.

Building an open source MySQL database server on a Raspberry Pi is an ideal IoT data solution. Although it does not have nearly the sophistication of a high availability, five-nines uptime (99.999 percent) database server, the low-cost Raspberry Pi with an attached USB hard drive makes for a very small-footprint database server that you can put just about anywhere. This is great because IoT solutions, by nature and often by necessity, need to be small and low cost. Having to build an expensive database server is not usually the level of investment desired.
